IGM Diamond Router Cutter Ekonomik Z2+1 - D16x26 L85 S=16x50 (6DP+1HW)

IGM Diamond Router Cutter Ekonomik Z2+1 - D16x26 L85 S=16x50 (6DP+1HW)


List price
117.92 €
141.50 € incl. VAT

Quantity discount
5% /From 10 pcs

Availability on stores
to 21 days

Order Code
M172-16061


51


Log in and watch the product's availability


Out of stock
117.92 €
141.50 € incl. VAT
2 pcs
139.75 €
167.70 € incl. VAT
1 pcs
204.39 €
245.27 € incl. VAT
Out of stock
117.92 €
141.50 € incl. VAT
4 pcs
139.75 €
167.70 € incl. VAT
Out of stock
204.39 €
245.27 € incl. VAT
1 pcs
239.33 €
287.20 € incl. VAT
Out of stock
115.95 €
139.14 € incl. VAT
Out of stock
154.60 €
185.52 € incl. VAT
Out of stock
193.25 €
231.90 € incl. VAT
Out of stock
231.90 €
278.28 € incl. VAT

• Hardened steel body.
• High-quality diamond edges.
• HW plunge tip.
• 2x Resharpenable.
• 50x longer life.
• Feed speed up to 10 m/min.

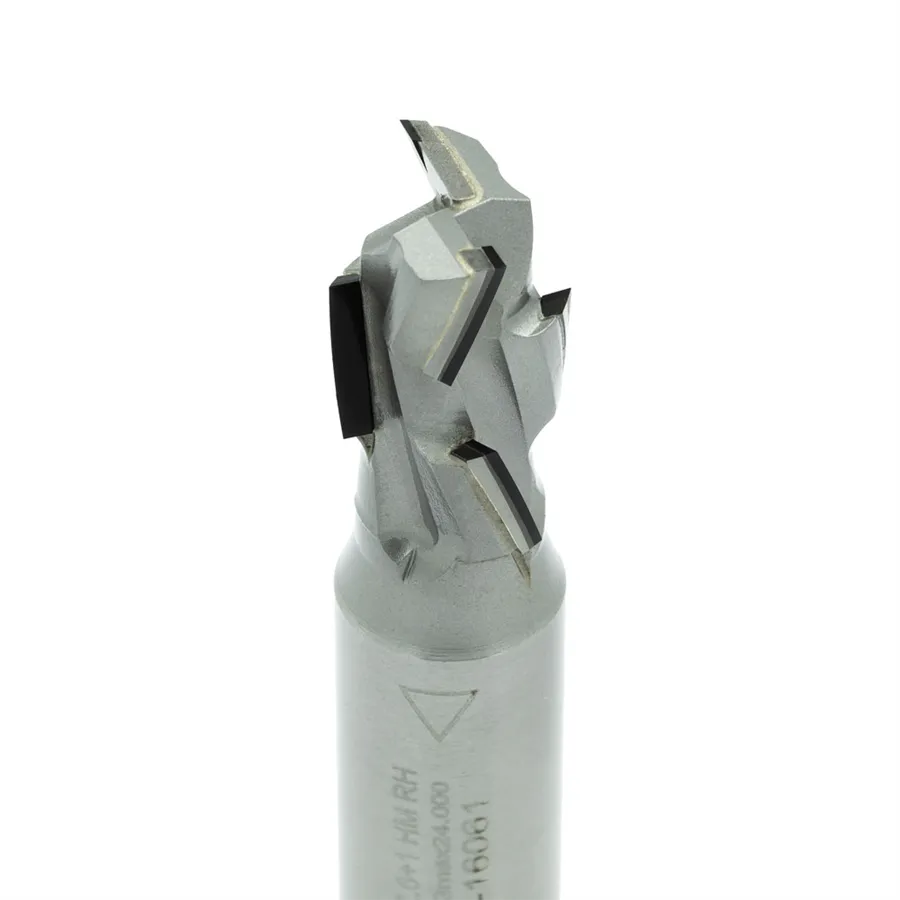

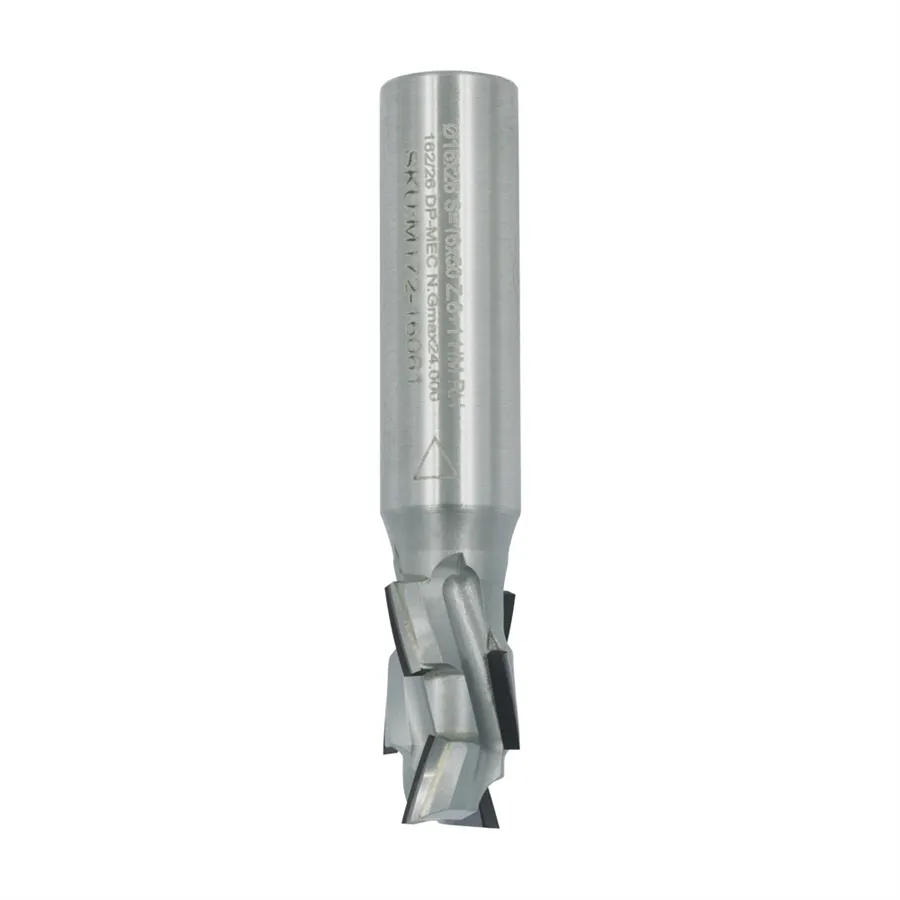

The M172 Diamond Cutters are designed for all types of CNC machines. Much better performance than one flute tool thanks to two flutes. Cutter life is approximately 50x longer than that of a standard tool with carbide HM edges. Ideal tool for the production of joints, grooves or for trimming of materials such as DTD, melamine and laminate, MDF, HPL and veneered DTD. Consider the type of operation and type of material before routing.

Axial angle geometry towards the centre of the board allows fine finish on the upper and lower edge.

The labelling Ekonomik marks tools with a basic height of the diamond knife. The height of the knife doesn't worsen the quality of the tool, it only affects the number of times it can be resharpened. Therefore, these tools are cheaper because of the height of the Dia knife.

Properties:
• Maximum speed: max. 24 000 rpm

• Regular speed: 18 000rpm
• Feed speed: 5-15 m/min
• DIA Leaf height: 2,5 mm


Shank (S)16 mm
Cutting diameter (D)16 mm
Total length (L)85 mm
Cutting height (I)26 mm
