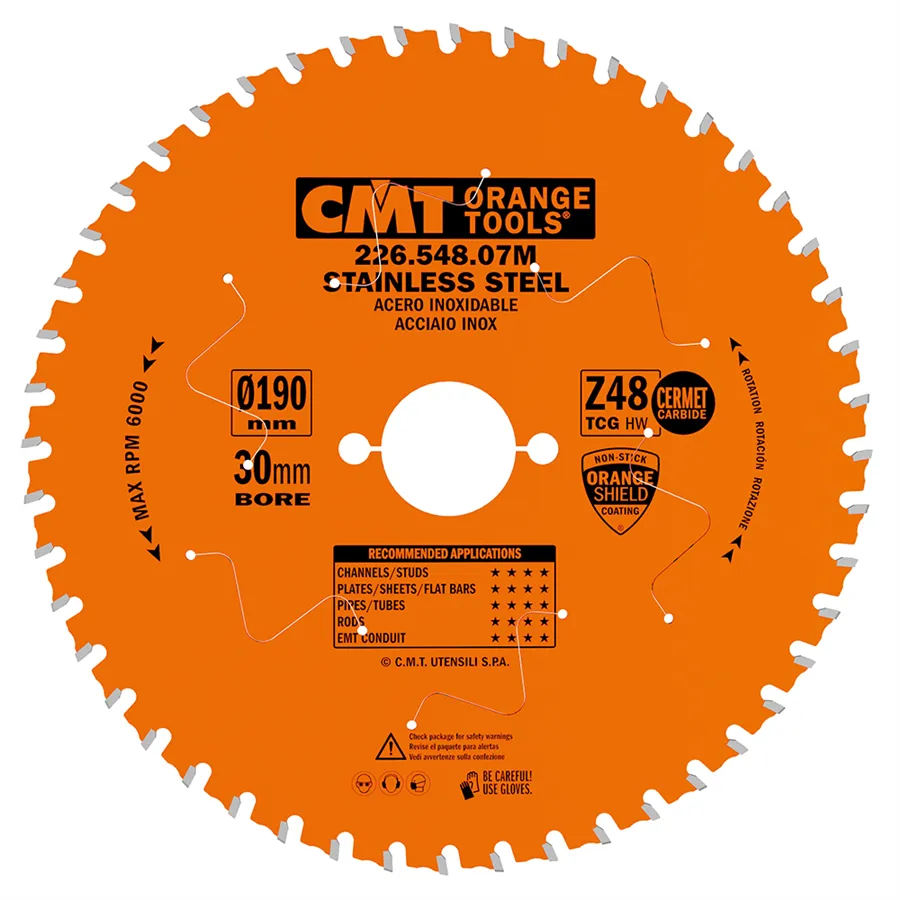

CMT XTreme Saw Blade for Stainless Steel - D190x1,8 d30 Z48 HW
CMT XTreme Saw Blade for Stainless Steel - D190x1,8 d30 Z48 HWCMT XTreme Saw Blade for Stainless Steel - D190x1,8 d30 Z48 HW

CMT XTreme Saw Blade for Stainless Steel - D190x1,8 d30 Z48 HW


List price
57.63 €
69.16 € incl. VAT

Quantity discount
5% /From 10 pcs

Availability on stores
Main Warehouse (delivery within 2-3 days)
3 pcs

Order Code
C22654807M


51


> 10 pcs
49.99 €
59.99 € incl. VAT
Out of stock
56.57 €
67.88 € incl. VAT
3 pcs
57.63 €
69.16 € incl. VAT
> 10 pcs
69.11 €
82.93 € incl. VAT
3 pcs
110.41 €
132.49 € incl. VAT
Out of stock
110.41 €
132.49 € incl. VAT
Out of stock
143.88 €
172.66 € incl. VAT
7 pcs
143.88 €
172.66 € incl. VAT
> 10 pcs
135.88 €
163.06 € incl. VAT

SAVE 14 %

ON SALE

2 pcs
164.32 €
197.18 € incl. VAT

Perfect "DRY" cutting on all types of saws either for metal or wood. Excellent quality of cut. A special tooth design combined with high-quality carbide teeth ensure long durability.

Ideal for all types of material:
• Soft and hard steel, cast iron, profiled iron, steel tubes and sheets
• Profiles for aluminium doors and windows, sandwich panels with PVC coating
• Sandwiches with steel surface, garage doors, facade panels
• Fitting, furniture, wardrobe rods, fitting for sliding doors etc.


Saw blades for stainless steel with high wear resistance.

Recommended speed for C226 blades
The speed indicated on the blade (MAX. RPM) is the maximum idle construction speed of the blade, these are not the speeds suitable for cutting.
The recommended speeds are listed below, do not exceed them.
Higher speeds can dull the HM teeth on the saw.

D Recommended speed (RPM) Max. const. speed (RPM)
160 4000 10000
190 3500 9000
200 3000 8500
250 2000 7000
300 1500 6000
350 1500 5000
400 1000 4500
450 1000 4000

Cutting diameter190 mm
Clamping diameter30 mm
Number of teeth 48
Tooth width1,8 mm
Rake angle

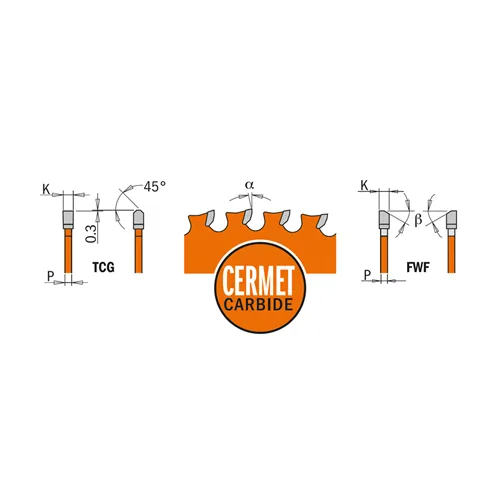

Type of toothFlat-ATB-tooth (FWF, FWFZ)
Pin Hole2/7/42
